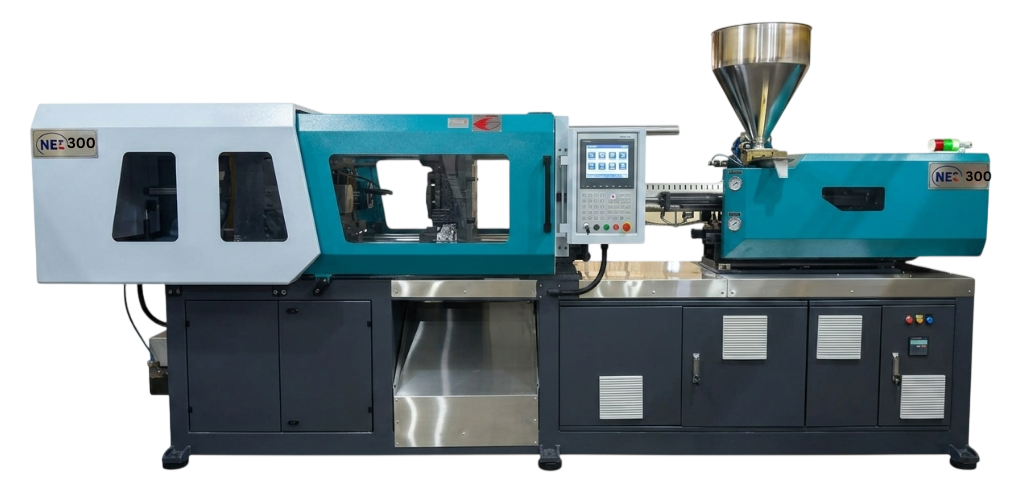

Injection Moulding Machine

At Naresh Engineering Corporation, we understand that every manufacturing requirement is unique. With decades of industry experience, we provide high-performance plastic injection moulding machines designed for precision, productivity, and long-term reliability. Our machines are engineered to deliver consistent output, energy efficiency, and superior product quality for diverse industrial applications.

INJECTION UNIT UNIT A B C
Screw Diameter mm 60 65 70
Length to diameter ratio L/D 23.8 22 20.4
Shot volume (Theoretical) CM³ 1000 1174 1362
Injection Weight g 910 1068 1240
Injection Pressure Mpa 214 182 157
Screw Speed Rpm 192
CLAMPING UNIT UNIT VALUE
Clamping Force KN 3300
Toggle Stroke mm 670
Space Between Tie Bars (W*H) mm 660 X 660
Max. Mold Height mm 680
Min. Mold Height mm 250
Ejector Stroke mm 160
Ejector Force KN 62
Number of Thimble p
OTHERS UNIT VALUE
Max. Pump Pressure mpa 16
Pump Motor Power KW 42
Heater Power KW 22.8
Machine Dimension (L×W×H) mm 6.9 × 1.85 × 2.35
Tank Capacity L 385
Machine Weight T 11.5
Temperature Control Area Number p 4+1
Nozzle Radius mm SR15
