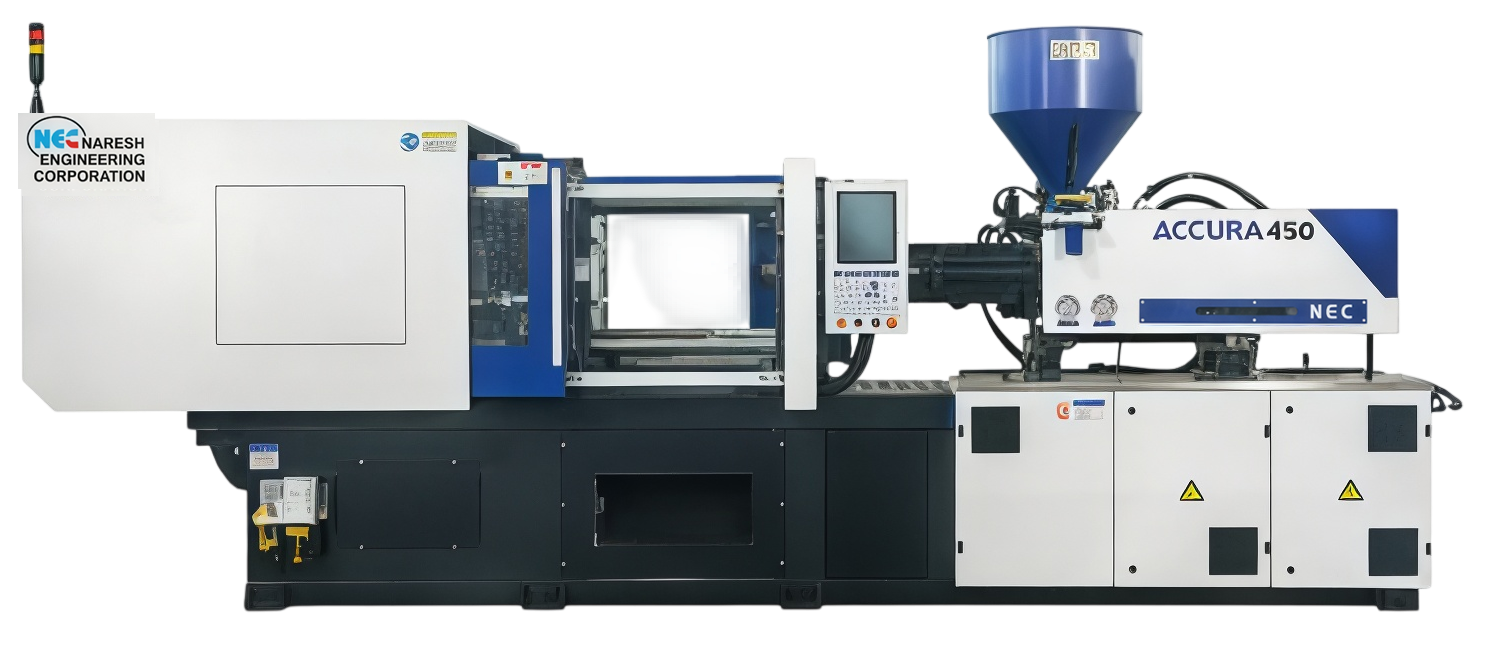

Injection Moulding Machine

At Naresh Engineering Corporation, we understand that every manufacturing requirement is unique. With decades of industry experience, we provide high-performance plastic injection moulding machines designed for precision, productivity, and long-term reliability. Our machines are engineered to deliver consistent output, energy efficiency, and superior product quality for diverse industrial applications.

Injection Unit Unit A B C
Screw Diameter mm 70 80 85
Shot Volume (Theoretical) cm³ 1424 1860 2100
Injection Weight (PS) g 1296 1692 1911
Injection Rate g/s 461 602 680
Injection Pressure MPa 228 174 154
Screw Speed rpm 0 – 175
Injection Stroke mm 370
Screw L/D Ratio L/D 20.5 18 17
Clamping Unit Unit 450
Clamping Force kN 4500
Open Stroke mm 820
Space Between Tie Bars (W × H) mm 820 × 800
MIN-MAX. Mould Height mm 300 – 790
MAX. Daylight mm 1610
Platen Size mm 1179 × 1144
Ejector Stroke mm 200
Ejector Force kN 113
Ejector Quantity pcs 13
Others
Pump Motor Power (Servo) kW 60.5
Hydraulic System Pressure MPa 17.5
Heating Power kW 39.1
Machine Dimension (L×W×H) m 8.45 × 1.95 × 2.4
Oil Tank Capacity L 650
Machine Weight t 16.9
