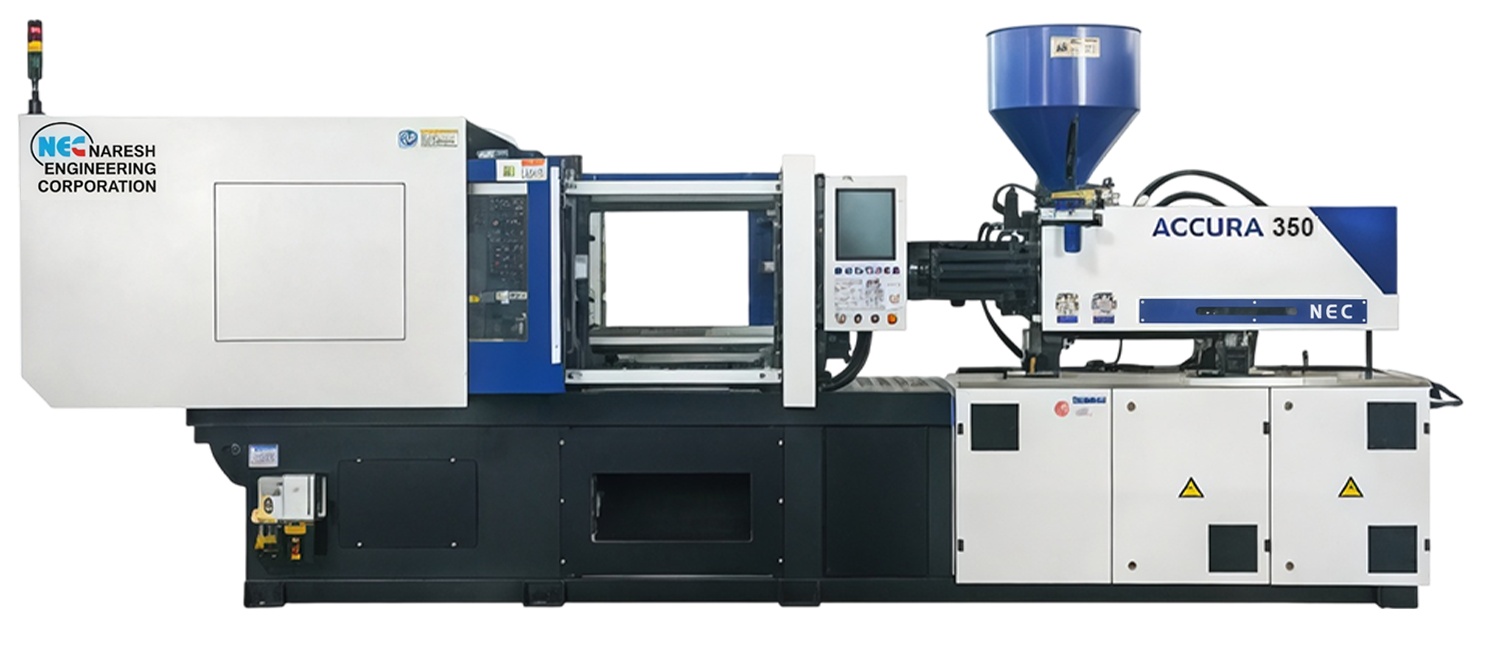

Injection Moulding Machine

At Naresh Engineering Corporation, we understand that every manufacturing requirement is unique. With decades of industry experience, we provide high-performance plastic injection moulding machines designed for precision, productivity, and long-term reliability. Our machines are engineered to deliver consistent output, energy efficiency, and superior product quality for diverse industrial applications.

Injection Unit Unit A B C
Screw Diameter mm 65 70 80
Shot Volume (Theoretical) cm³ 1068 1239 1618
Injection Weight (PS) g 972 1127 1472
Injection Rate g/s 451 523 683
Injection Pressure MPa 207 179 137
Screw Speed rpm 0 – 210
Injection Stroke mm 320
Screw L/D Ratio L/D 21.5 20 17.5
Clamping Unit Unit 350
Clamping Force kN 3500
Open Stroke mm 715
Space Between Tie Bars (W × H) mm 730 × 680
MIN-MAX. Mould Height mm 250 – 750
MAX. Daylight mm 1465
Platen Size mm 1070 × 1020
Ejector Stroke mm 182
Ejector Force kN 102
Ejector Quantity pcs 13
Others
Pump Motor Power (Servo) kW 60.5
Hydraulic System Pressure MPa 17.5
Heating Power kW 32.7
Machine Dimension (L×W×H) m 7.45 × 1.8 × 2.4
Oil Tank Capacity L 500
Machine Weight t 12.8
